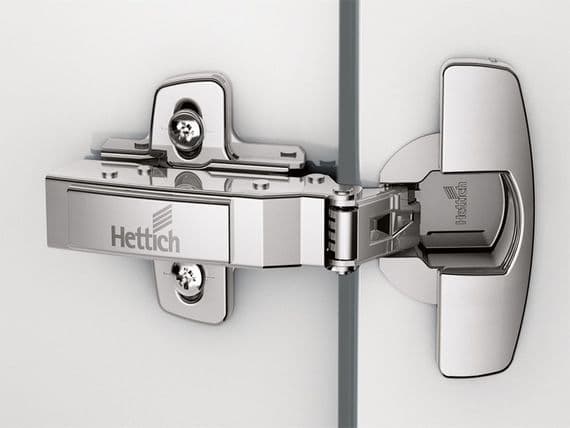

Hinge Sensys 110° 8645i Clip On Full Overlay Hinge
Fast Assembly Concealed Hinge with Integrated Silent System
Base 12.5, THS 55, Mounting Drilling Ø 10 x 6, Fix Fast Assembly
- Concealed hinge with clip on installation and integrated Silent System
- Quality classification under EN 15570, Level 3
- For door thickness of 15 - 24 mm
- Cup diameter 35 mm
- Cup depth 12.8 mm
- Integrated + 2 mm / - 2 mm overlay adjustment
- Integrated depth adjustment + 3 mm / - 2 mm
- Height adjustment at mounting plate
- Hinge arm material: steel, nickel plated
- Hinge cup material: steel, nickel plated
Technical.
| Design | 90° construction |
| Door type | Standard door / Wooden door Wood framed door (frame width ≥ 50 mm) |
| User friendly features | With Integrated Silent System |
| Mounting option for hinges | Fix fast assembly |
| Door mounting option | Overlay |
| Opening angle° | 110° |
| Min. door thickness | 15mm |
| Max. door thickness | 24mm |
| Cup version | THS 55 |
| Base | 12.5mm |
| Cup diameter | 35mm |
| Cup depth | 12.8mm |
| Hinge arm / cup | Nickel Plated Steel |
| Drilling pattern, hinge | TH 52 x 5,5 mm TS 48 x 6 mm |
| Diameter of mounting hole | 10 mm Ø |
| Integrated overlay adjustment | +2 mm / -2 mm |
| Integrated depth adjustment | +3 mm / -2 mm |
| Mounting hole | ø 10 x 6 |
| Stay closed function | Yes |
| Finish | Nickel Plated |
| Pack Quantity | 2 |
| Unit of Measure | 1 |
