NUIE Fully Waterproof PVC Bath Panels
NUIE Fully Waterproof PVC Bath Panels
NUIE Fully Waterproof PVC Bath Panels
NUIE Fully Waterproof PVC Bath Panels
NUIE Fully Waterproof PVC Bath Panels
View more images
NUIE Fully Waterproof PVC Bath Panels

Product Description

Fully Waterproof Construction

NUIE Fully Waterproof PVC Bath Panels

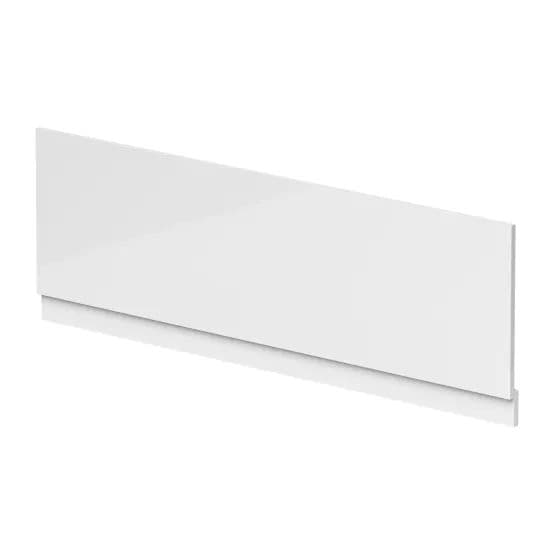

Complete your fitted bath with a clean, modern panel designed for demanding bathroom environments. NUIE waterproof bath panels combine a rigid 18mm PVC and polyurea construction with an easy-clean gloss white finish, providing a durable alternative to traditional wood-based bath panels.

Fully Waterproof PVC and polyurea construction
Adjustable Height Up to approximately 560mm
18mm Thick Strong and reassuringly rigid
Five-Year Guarantee Manufacturer-backed assurance

Waterproof from the Surface to the Core

Unlike MDF and other wood-based bath panels, this NUIE panel does not rely on a decorative surface coating to protect a timber core. Its PVC and polyurea construction is waterproof throughout, making it particularly suitable for busy family bathrooms, rental properties and rooms exposed to frequent splashes or high humidity.

The non-timber construction will not swell or warp through moisture absorption. This provides added reassurance around the bath, especially where occasional water contact is difficult to avoid.

A Clean Gloss White Finish

Bright Contemporary Appearance

The smooth gloss white surface reflects light and coordinates easily with white bathroom suites, tiles and furniture.

Easy Everyday Cleaning

The non-porous surface can be wiped clean using a soft cloth and suitable non-abrasive bathroom cleaner.

Rigid 18mm Construction

The substantial panel thickness provides a more solid appearance and feel than lightweight, thin acrylic alternatives.

Installer-Friendly Material

Despite its rigidity, the panel remains relatively lightweight and can be carefully trimmed to suit the bath installation.

Key Features

  • Fully waterproof PVC and polyurea construction.
  • Gloss white contemporary finish.
  • Substantial 18mm panel thickness.
  • 480mm main panel with a separate 100mm plinth.
  • Adjustable installation height up to approximately 560mm.
  • 1695mm front-panel width to suit many standard UK baths.
  • Does not swell or warp through water absorption.
  • More rigid and sturdy than lightweight acrylic bath panels.
  • Formaldehyde-free and recyclable construction.
  • Lightweight enough for easier handling and trimming.
  • Fixings and matching plinth included.
  • Front and matching end-panel options available.
  • Covered by a five-year manufacturer’s guarantee.

Product Specification

Brand
NUIE Choice
Product type
Waterproof two-piece adjustable bath panel
Style
Contemporary
Colour and finish
Gloss white
Material
PVC and polyurea
Panel thickness
18mm
Front-panel width
1695mm
Main panel height
480mm
Plinth height
100mm
Maximum fitted height
Approximately 560mm
Included
Main panel, matching plinth and required panel fixings
End panel
Available separately where required
Guarantee
Five-year manufacturer’s guarantee, subject to applicable terms

How the Adjustable Plinth Works

Measure Your Bath Measure from the floor to the underside of the bath rim at several points.
Position the Plinth Overlap the 100mm plinth with the main panel until the required overall installation height is achieved.
Trim and Secure Carefully trim where required, then secure the panel and plinth using the supplied fixings.

Please note: The 480mm main panel and 100mm plinth overlap during installation. Their individual heights should not be added together when calculating the finished height. The maximum installed height is approximately 560mm.

Front and End Panel Options

Select a front panel when only the long side of the bath is exposed. Where the short end of the bath is also visible, add the corresponding NUIE end panel to create a coordinated finish around both sides.

Important: Check the selected product option carefully before ordering. A two-piece adjustable front panel normally refers to the main panel and its plinth—not a front-and-end panel set.

Cutting and Installation

The panel can be trimmed to accommodate the bath length, surrounding walls, skirting or other installation restrictions. Measure carefully and support the panel properly while cutting, using appropriate tools recommended for PVC products.

  • Measure the opening at several positions before cutting.
  • Mark the finished cutting line clearly and check the measurement twice.
  • Protect the gloss surface while the panel is being handled and trimmed.
  • Use suitable sharp tools to achieve a clean cut.
  • Secure the panel to an appropriate bath frame or supporting structure.
  • Follow the manufacturer’s instructions supplied with the product.
View Bath Panel Fitting Guidance

Frequently Asked Questions

Is the complete panel waterproof? Yes. The PVC and polyurea construction is waterproof throughout and does not contain an MDF or timber core.
What is included with the panel? The selected main panel is supplied with a matching adjustable plinth and panel fixings. Check the chosen front or end option before ordering.
Does two piece mean front and end panels? No. For the front-panel option, the two pieces are the main panel and its separate adjustable plinth. An end panel is ordered separately where required.
Can the panel be cut to fit? Yes. Its lightweight PVC construction can be carefully trimmed using suitable tools. Measure accurately and protect the gloss surface while cutting.
Will the panel swell if it gets wet? No. It does not contain a wood-based core, so it will not swell through water absorption in the way an incorrectly sealed MDF panel can.
How should I clean the gloss surface? Wipe it with a soft cloth and a suitable non-abrasive bathroom cleaner. Avoid abrasive pads or harsh products that could mark the gloss finish.
Is the panel recyclable? The product is described by the manufacturer as recyclable and formaldehyde-free. Local recycling facilities and acceptance policies may vary.
