Product Description

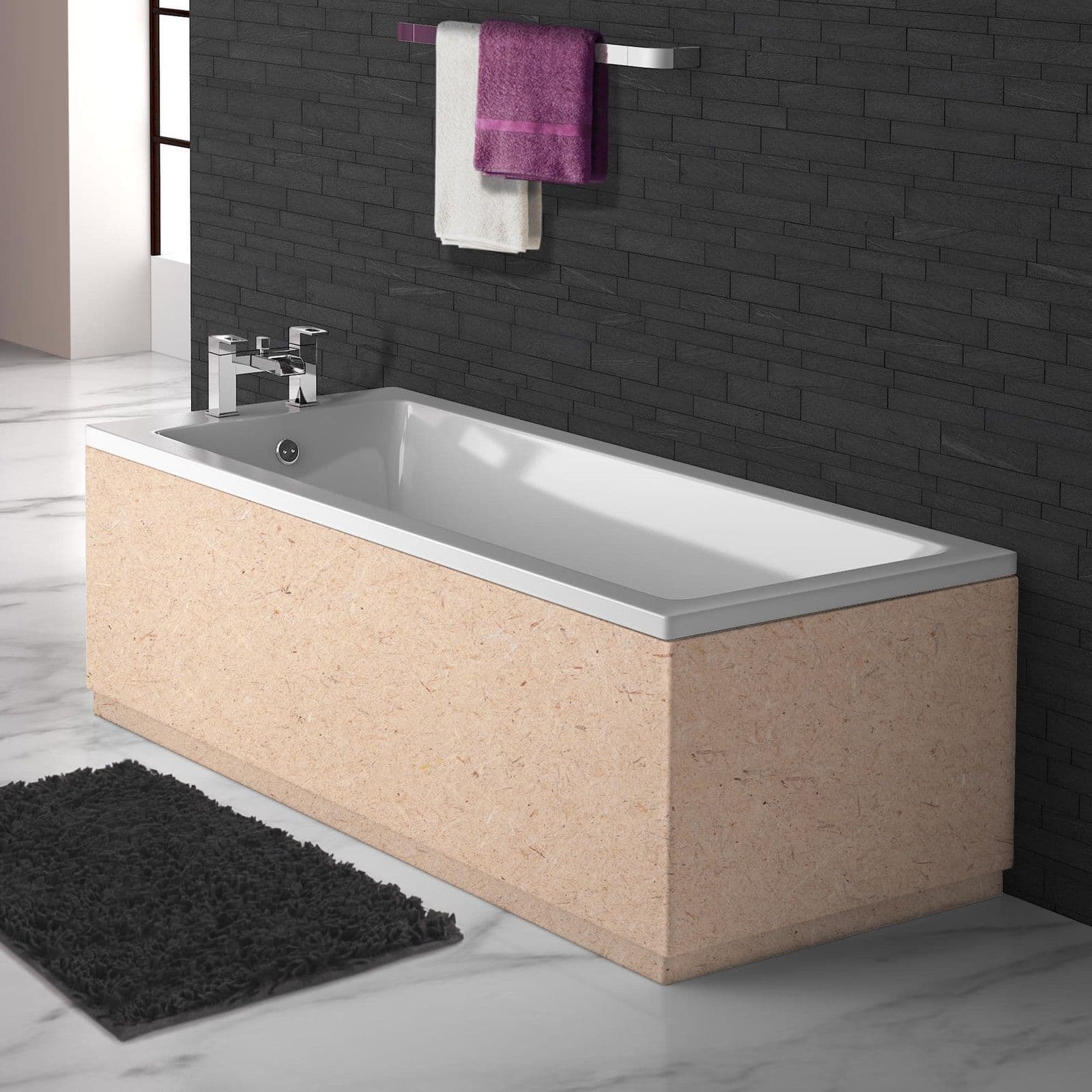

Paintable MDF 2-Piece Adjustable Bath Panels

Create a bath panel that matches your walls, furniture or individual colour scheme. Each TubCraft panel is British-made from moisture-resistant MDF and pre-sealed with Rustins MDF Sealer ready for final preparation and painting.

Paint your own finish Height adjustable Moisture-resistant MDF Made in Kent Five-year guarantee

Match Your Bath Panel to Your Bathroom

A paintable bath panel gives you complete control over the final colour. Coordinate it with painted bathroom furniture, create a tonal finish against the walls or introduce a contrasting feature colour around the bath.

The MEDITE moisture-resistant MDF is pre-sealed with Rustins MDF Sealer. This reduces the rapid absorption associated with bare MDF and provides a prepared surface ready for light sanding, a suitable primer or undercoat, and your chosen bathroom paint.

What Does Two-Piece Bath Panel Mean?

01

450mm Main Panel

The main MDF panel forms the large visible face beneath the rim of the bath.

02

125mm Adjustable Plinth

The separate plinth is secured behind the main panel at the height required for the installation.

Two-piece means main panel plus plinth. It does not mean that a front panel and end panel are both included. A matching end panel is available separately through the product options. Where selected, its plinth is also recessed behind its main end-panel section.

Panel Features

  • 450mm-high main MDF panel
  • Separate 125mm adjustable plinth
  • Finished height adjustable from 450mm to 550mm
  • MEDITE moisture-resistant MDF construction
  • Pre-sealed with Rustins MDF Sealer
  • Choice of available panel styles
  • Choice of available panel thicknesses
  • Standard and custom sizes available
  • Optional 5mm top lip
  • Optional matching end panel

Standard Fittings Supplied

  • Stainless-steel screws for securing the plinth
  • Stainless-steel screws for fixing to a suitable frame
  • Self-adhesive screw-head covers
  • Fitting instructions
  • Pre-sealed paintable MDF surfaces
  • Five-year product guarantee

A supporting bath frame or timber battens are required and are not supplied with the standard panel.

Preparing and Painting Your Bath Panel

Prepare

Lightly sand the sealed surface where required and remove all dust with a clean cloth.

Prime

Apply a suitable MDF primer or undercoat according to the paint manufacturer’s instructions.

Paint

Apply the selected bathroom-suitable topcoat using the recommended number of coats.

Seal Edges

Re-seal every edge exposed by cutting, trimming or drilling before installation.

Rustins MDF Sealer is not the final decorative finish. The panel is pre-sealed to control absorption and prepare the MDF for painting. Apply the primer, undercoat and topcoat appropriate for your selected paint system.

Illustrated Painting Guide

TubCraft paintable MDF bath panel painting guide

Available Product Options

Configure the panel using the options shown above. Availability and any price adjustment will be displayed before the product is added to your basket.

Panel size Custom sizing Panel style Panel thickness Optional 5mm lip Optional end panel Optional Easy Fit Kit Optional sealing strip

Product Specifications

Product type
Paintable adjustable two-piece bath panel
Two-piece construction
Main panel plus separate recessed plinth
Main-panel height
450mm
Plinth height
125mm
Finished adjustment
450mm to 550mm
Core material
MEDITE moisture-resistant MDF
Preparation
Pre-sealed with Rustins MDF Sealer
Final finish
Supplied ready for final preparation, priming and painting
Top lip
Optional 5mm lip selected when ordering
End panel
Optional matching paintable end panel
Brand
TubCraft
Product code
mdf2p1700
Manufacture
Hand-made in Kent, United Kingdom
Guarantee
Five years, subject to the applicable terms and correct preparation, painting and installation

Optional Hidden Easy Fit and Removal Kit

Select the Easy Fit Kit when ordering if you want concealed fixings and easier future removal for access beneath the bath.

The brackets and buttons are positioned behind the bath panel, allowing the panel to attach securely without visible fixing screws through its painted front surface. The panel can later be removed and refitted when access to taps, waste fittings or pipework is required.

10 Fixing brackets
10 Fixing buttons
30 Marine-grade stainless-steel screws
  • 20 marine-grade stainless-steel pan-head screws
  • 10 marine-grade stainless-steel countersunk screws
  • Suitable for attaching panels to frames and battens
  • Concealed behind the panel after installation
  • Allows the panel to be removed and reinstalled
  • Corrosion-resistant fittings suitable for bathrooms
Important: the complete Easy Fit Kit is an optional extra and is only included when selected from the product options.

Installation Guidance

Standard Installation

  • Build or prepare a suitable bath frame or battens
  • Set the recessed plinth to the required height
  • Secure the plinth behind the main panel
  • Dry-fit the completed panel before final fixing
  • Seal any cut or drilled MDF edges
  • Fix the panel securely to the supporting frame

Optional Finishing Details

  • Add a 5mm top lip if appropriate for the bath rim
  • Add a matching adjustable end panel where required
  • Add a sealing strip to protect the lower edge
  • Select the Easy Fit Kit for concealed removal
  • Plan access to taps and waste fittings before fixing

Moisture-Resistant Does Not Mean Completely Waterproof

MEDITE moisture-resistant MDF is designed for humid interior environments, but its exposed core must still be protected. Correctly seal every cut edge and drilled hole, complete the paint system on all required surfaces and prevent standing water from reaching exposed MDF.

Made to Order in Our UK Workshop

Each bath panel is manufactured for your order in our Kent workshop. Please allow approximately one week for manufacture and delivery, although timescales can extend during busy periods.

Panels are carefully wrapped and reinforced for transport. Dispatch confirmation and available tracking information will be sent by email.

Frequently Asked Questions

What does two-piece bath panel mean?

It means one main panel plus one separate adjustable plinth. It does not mean a front and end panel. An end panel is an optional selection.

How is the panel height adjusted?

The 125mm plinth overlaps behind the 450mm main panel and is secured at the height required. This provides a finished adjustment range from 450mm to 550mm.

Is the plinth recessed?

Yes. The plinth is fixed behind the main panel rather than flush with its front face. A selected matching end panel uses the same recessed two-piece arrangement.

Can I paint directly onto the MDF sealer?

Rustins MDF Sealer controls absorption and prepares the surface. Lightly prepare the panel and use the primer, undercoat and bathroom-suitable topcoat recommended by your paint manufacturer.

What is a 5mm bath-panel lip?

A lip is a small 5mm by 5mm extension along the upper edge designed to locate beneath a compatible bath rim. Because bath undersides can be uneven, only select a lip when it is suitable for your installation.

Is the Hidden Easy Fit Kit included?

It is optional and is only supplied when selected. The complete kit contains 10 brackets, 10 buttons and 30 marine-grade stainless-steel screws.

Can I order a custom size?

Yes. Select the custom-size option and supply the required measurements. Measure carefully because the panel will be manufactured specifically for the dimensions provided.

Create a Bath Panel in Your Perfect Colour

Choose the size, routed style and thickness, then add any required lip, end panel, sealing strip or concealed Easy Fit Kit before completing your order.

View Fitting Guidance View Easy Fit Kit

Specifications

MPN
Finish
MDF Paintable
Style
Paintable
Length
1200mm
Material
MR MDF
Brand
Tub Craft
Product Code
mdf2p1700

2 Customer Reviews

Paintable MDF 2 Piece Bath Panels

Item in Stock (1085 Available)

Product Code mdf2p1700

TubCraft Paintable MDF 2-Piece Bath Panels

Create a made-to-match finish with British-made TubCraft bath panels. Each two-piece panel has a 450mm moisture-resistant MDF main panel and a 125mm recessed plinth, providing height adjustment from 450mm to 550mm.

Pre-sealed with Rustins MDF Sealer and ready for primer and paint. Choose the size, style, thickness, optional lip, end panel, sealing strip and concealed Easy Fit Kit.
